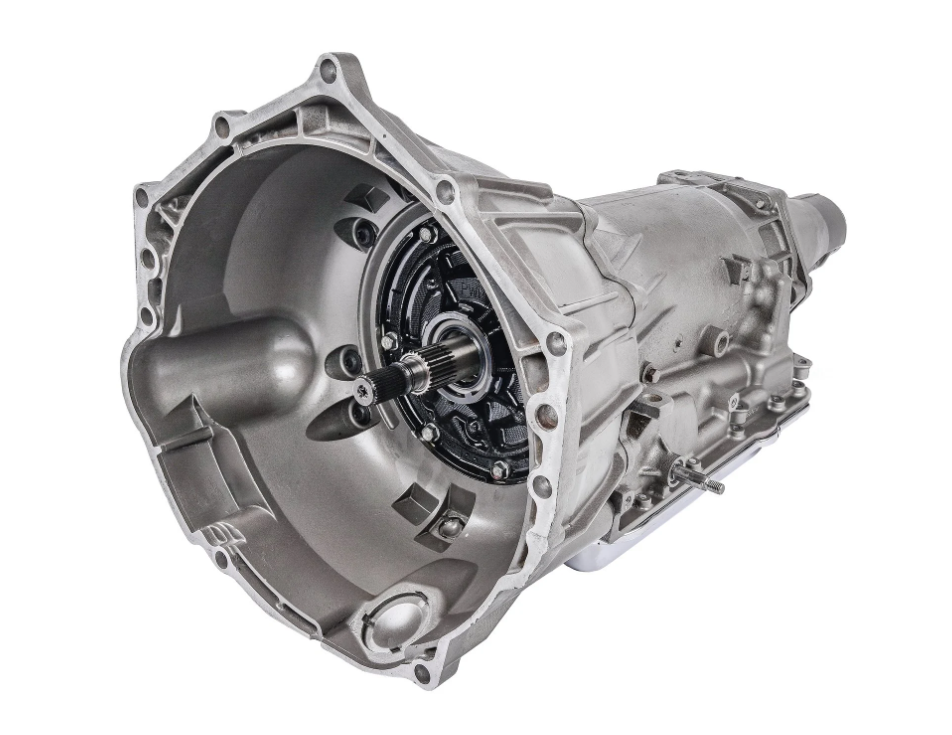

4L65E Performance Transmission 2WD 750HP for Chevy GMC LS 2007-2008 15-Pin

REBUILT 4L65E PERFORMANCE TRANSMISSION — RATED TO 750 HP

Is your transmission showing these symptoms?

• Slipping or flaring on the 3-4 shift
• Harsh, delayed, or no upshifts / downshifts
• Burnt or discolored fluid and overheating
• Broken sun shell or 3-4 clutch debris in the pan
• Cracked or failed input drum
• Limp mode or falling out of gear under load

If your 4L60E or 4L65E is giving up, this fully rebuilt, performance-spec 4L65E is a direct replacement that also adds serious strength.

BUILT TO HANDLE UP TO 750 HORSEPOWER

• All-new frictions and steels throughout, with a 7-clutch GPZ 3-4 stackup for extreme stress and heat
• New heavy-duty front and rear sprags
• New 5-pinion front and rear planetary gearsets
• Input drum reinforcement kit with new billet overrun apply piston to prevent breakage
• New wide 2-4 band paired with a brand-new reverse input drum
• Redesigned heavy-duty sun shell that redistributes load off the roller bearings
• Heavy-duty 3rd shift valve that extends forward sprag and clutch life
• Complete bushing kit including the wide rear sun gear bushing

FIRMER SHIFTS & HIGH-RPM DURABILITY

• Rebuilt valve body with heavy-duty shift kit installed
• Rebuilt front pump: new rotor, vane and slide kit, .500 boost valve, and new pressure regulator valve for higher line pressure and firmer shifts
• "High-Rev" unbreakable vane rings validated to 9000 RPM
• Redesigned 3-4 clutch piston return springs that reduce centrifugal 3-4 apply and failure in 1st gear at 5500 RPM and above
• Corvette servo upgrade with billet 4th apply piston and cover

MANUAL CONTROL FEATURES

• Full gear-lever-controlled downshifts, 3rd through 1st
• Hold manual 1st or 2nd gear at any speed or RPM

ALSO INCLUDED

• Complete overhaul kit: seals, gaskets, and rings
• New electronics throughout, including wiring harness
• New filter
• 6 month/5,000 mile warranty

FITMENT — 2007-2008 GMC/Chevy 2WD, LS ENGINE, 15-PIN CONNECTOR

• Chevrolet Silverado 1500
• Chevrolet Tahoe
• Chevrolet Suburban 1500
• Chevrolet Avalanche
• GMC Sierra 1500
• GMC Yukon
• GMC Yukon XL 1500

PLEASE CONFIRM BEFORE YOU BUY

• 2WD only — this unit does not fit 4WD applications.
• 15-pin connector only — does not fit 2006-and-earlier 13-pin units or 2009-and-newer 17-pin units. Year ranges are not hard cutoffs; verify by the connector on your vehicle.
• LS-series engine — uses the 300mm LS-style bellhousing.
• Torque converter not included — a 300mm LS-style torque converter is required to complete the installation and is sold separately.

ITEM SPECIFICS

• Type: Automatic Transmission (Rebuilt / Remanufactured)
• Model: 4L65E
• Drivetrain: 2WD
• Connector: 15-Pin
• Engine Family: GM LS-Series
• Bellhousing: 300mm LS-Style
• Input Shaft: 30-Spline
• Power Rating: Up to 750 HP
• Torque Converter: Not Included (300mm required)
• 6-month/5,000 mile warranty

PROTECT YOUR NEW BUILD Add Lubegard Platinum Universal ATF Protectant to your fresh fluid to reduce operating heat, control shudder, and extend the life of your newly rebuilt clutches and seals.
