4L80E Overrun Clutch Drum With Sun Gear for GM 2002-Up

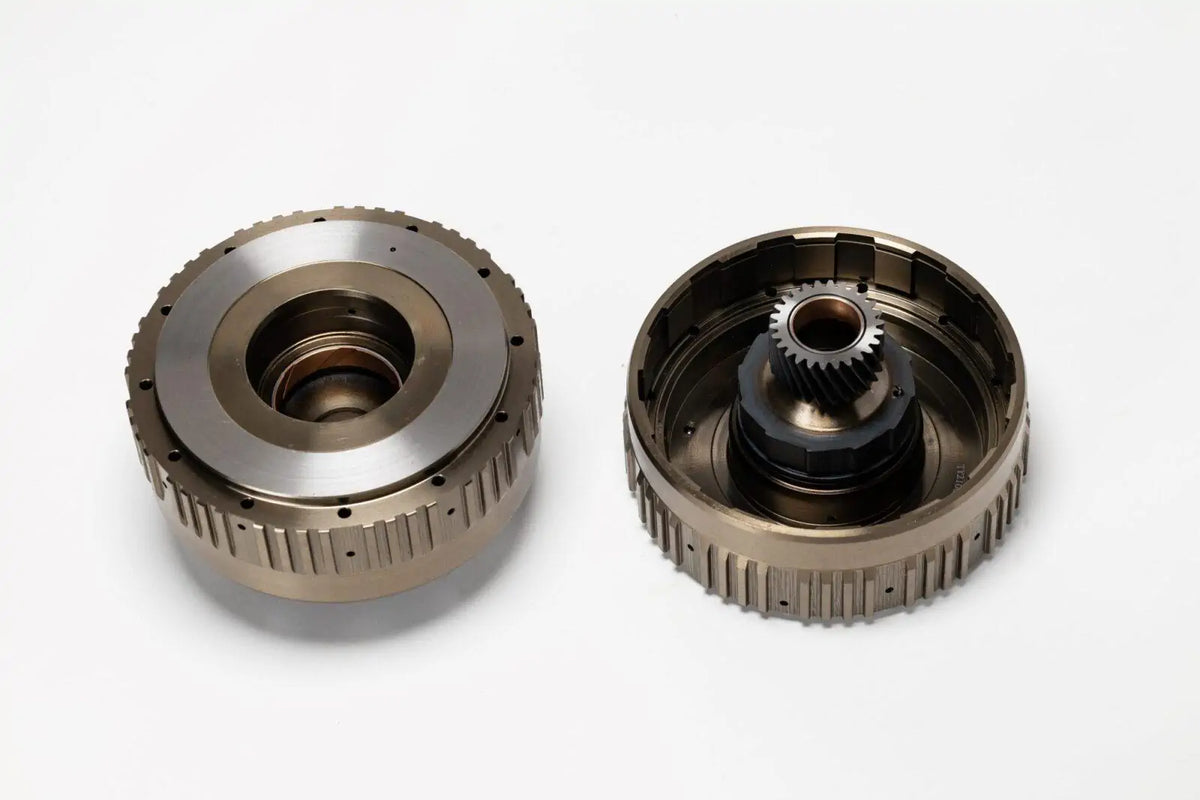

4L80E Overrun Clutch Drum With Sun Gear — Fits GM 2002-Up Applications With Matching 0.196-Inch Roller Sprag Configuration

Overrun clutch drum with sun gear for GM 4L80E automatic transmission rebuild applications, 2002-up. This drum is for the later-style configuration using a 12-roller overdrive sprag with 0.196-inch OD rollers.

Important Configuration Information
Verify the original roller-clutch design before ordering. Earlier 4L80E assemblies use a different roller-clutch configuration, so vehicle year alone is not sufficient to confirm compatibility. Match the transmission model, original drum, roller-clutch style, and roller outside diameter.

Part Function
The overrun clutch drum includes the sun gear and provides the inner race surface for the 4L80E overdrive roller clutch. In normal operation, the overdrive roller clutch transfers load through the overdrive planetary system in the lower forward gears. The overrun clutch drum is also applied in manual ranges to provide engine braking and support the roller-clutch assembly.

When To Inspect Or Replace
Replace this drum when teardown identifies scoring, race-surface damage, heat damage, roller-clutch failure debris, or other wear affecting the overrun clutch drum assembly. A failed overdrive roller clutch can also damage the overdrive planetary, related bearings, and forward-drum/ring-gear components, so inspect all mating parts before reassembly.

Part Details

• Part Type: Overrun clutch drum with sun gear

• Transmission: GM 4L80E

• Application Range: 2002-up

• Roller-Clutch Configuration: 12-roller sprag

• Roller Size: 0.196-inch OD rollers

• Installation Use: Internal transmission repair or rebuild

• Included: Overrun clutch drum with sun gear only

• Not Included: Roller clutch, planetary assembly, bearings, clutches, seals, gaskets, or rebuild kit

Fluid Service Guidance
Use the vehicle manufacturer’s specified automatic transmission fluid during refill. Lubegard ATF Protectant may be considered when compatible with the specified ATF and used according to its directions; it does not replace the repair of worn, damaged, or failed transmission components.

Confirm the original component configuration before ordering and have a qualified transmission professional perform installation and internal clearances checks.
