700R4 Rebuilt Auxiliary Pump Compatible with GM Chevy 1987-1993 30 Spline Lockup

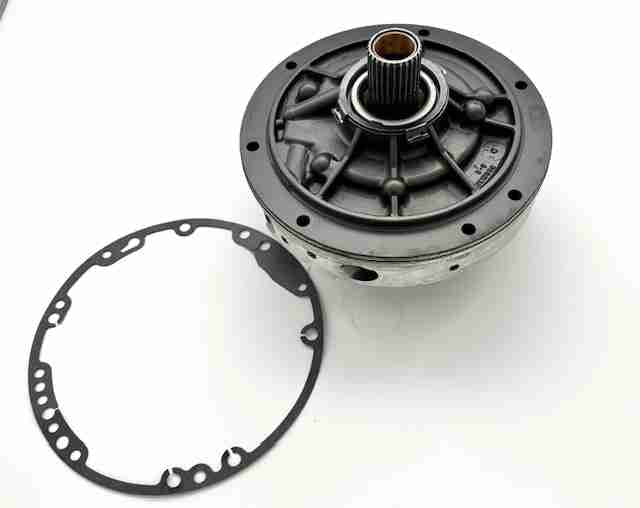

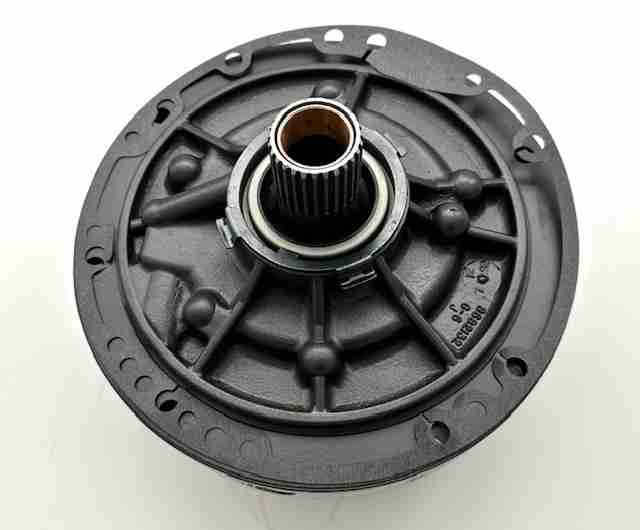

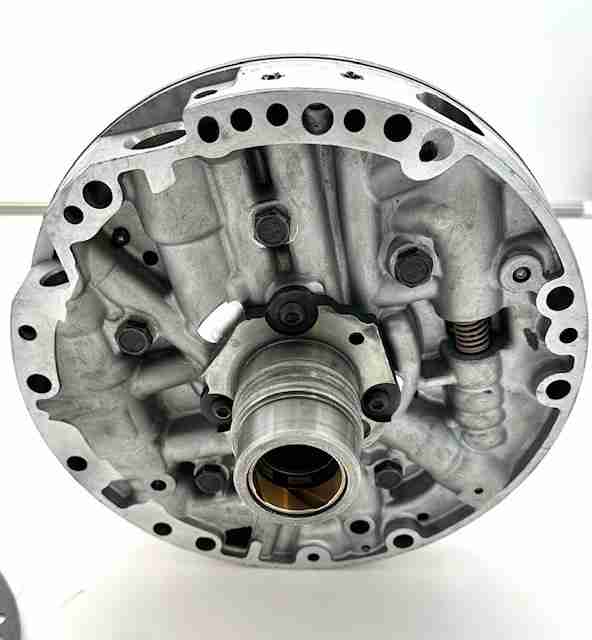

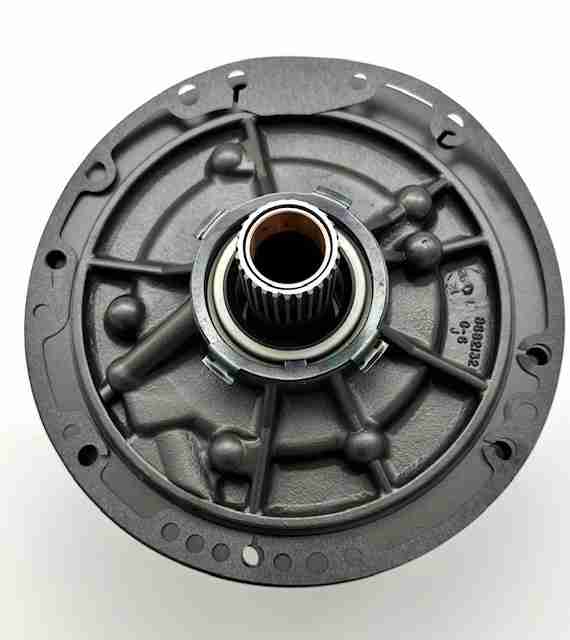

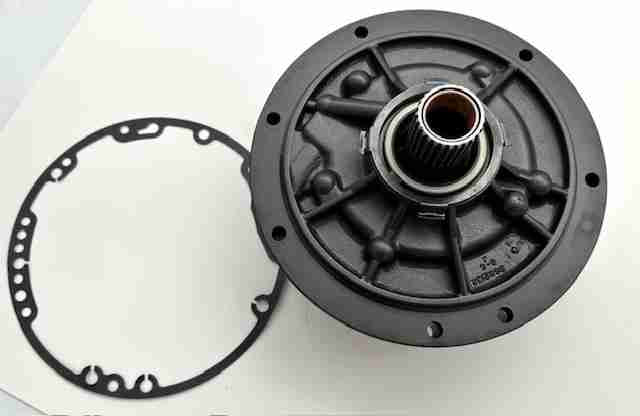

PROFESSIONALLY REBUILT 700R4 / 4L60 AUXILIARY PUMP

Fully rebuilt auxiliary-style (second-generation) front pump for the 30-spline, lockup 700R4 / 4L60, compatible with 1987-1993 GM and Chevrolet transmissions using the auxiliary valve body. Drop-in ready.

WHAT'S INCLUDED IN THE REBUILD

• Sandblasted and refinished cover for a factory look
• NEW .500" high-performance boost valve assembly - helps eliminate throttle boost leakage and supports maximum line pressure
• NEW wide Teflon stator support bushings (front and rear)
• NEW Teflon front pump cover bushing
• NEW solid Teflon sealing rings installed with professional tooling
• NEW pump oil seal with retainer ring to help prevent blow-out
• NEW pump-to-case gasket
• Proven OEM 10-vane rotor and pump gears
• All valves disassembled, cleaned and function-tested

HELPS CORRECT THESE SYMPTOMS

• Erratic or unstable line pressure
• Low line rise / soft or delayed shifts
• Slipping or failing 3-4 shift
• Pump whine or excess pump noise
• Reverse chatter or engagement concerns

FITMENT

• 700R4 / 4L60 auxiliary valve body (second-generation) transmissions
• 30-spline input shaft, lockup style
• GM / Chevrolet 1987-1993
• Common applications include Camaro, Corvette and Firebird (F-body)

DOES NOT FIT

• First-generation (non-auxiliary valve body) 700R4 transmissions
• Non-lockup or non-30-spline 700R4 units
• 4L60E electronic transmissions

BEFORE YOU BUY

Confirm your transmission uses the auxiliary valve body style and a 30-spline input shaft before ordering. When in doubt, verify by casting/valve body type rather than year alone.

FINISH THE JOB RIGHT

Add Lubegard Platinum Universal ATF Protectant to your order - it helps protect seals, reduce operating heat, and extend the life of your freshly rebuilt transmission.
