TransGo Shift Kit For Chrysler Jeep Dodge 42RLE VLP 2006-2017

TransGo SHIFT KIT Valve Body Repair Kit
Part Number: SK 42RLE-VLP

Fits compatible Chrysler, Dodge, Jeep, and Ram automatic-transmission applications equipped with a variable line pressure solenoid and sensor.

Transmission Fitment

• 2006-2017 42RLE-VLP, rear-wheel drive

• 2006-up A604/604-VLP, front-wheel drive

• 2006-up 40TES, front-wheel drive

• 2006-up 41TES, front-wheel drive

Important Fitment Note
For VLP-equipped transmissions only. Verify that the valve body uses both a variable line pressure solenoid and VLP sensor. For non-VLP units, use TransGo SK 604 instead.

Designed To Help Address

• Torque converter clutch slip or shudder

• P0740-related torque converter clutch concerns

• Overheating associated with hydraulic leakage

• Delayed or no forward engagement

• Delayed or no reverse engagement

• Converter drain-back symptoms

• 4-3 coast-down clunk

• 2-1 coast-down clunk

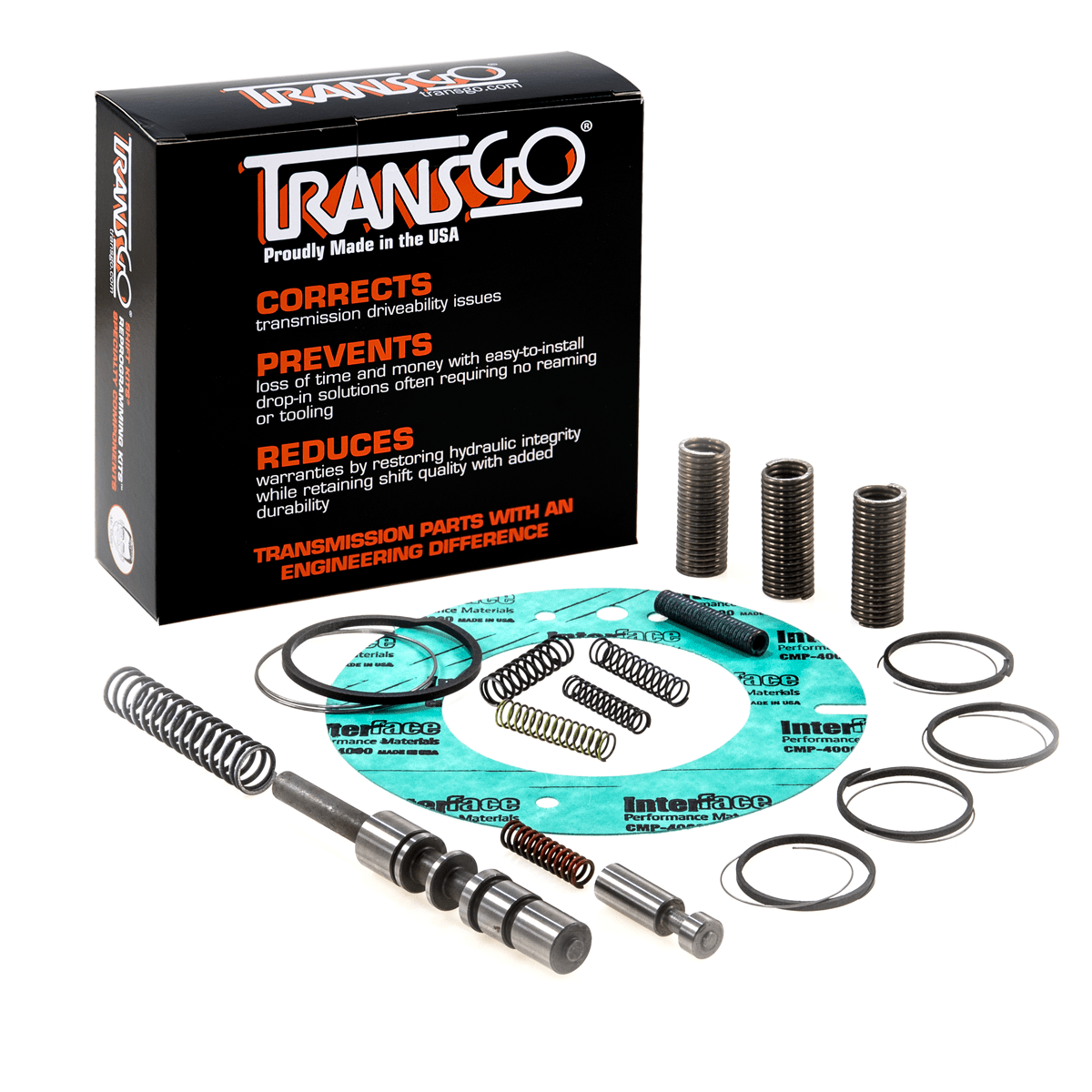

Kit Features

• Drop-in hardened-steel pressure regulator valve and calibration spring

• Drop-in redesigned torque-converter regulator valve and calibration spring

• Extended valve lands for improved hydraulic circuit integrity

• No bore reaming or machining required for the included regulator-valve updates

• Non-shrinking low/reverse piston-housing gasket

• High-temperature accumulator seals and expander wires for aluminum accumulator pistons

• Accumulator spacers for shorter, cleaner shift operation

• TCC control accumulator springs and control-valve springs

• Self-expanding underdrive Tuff Seal and expander wire

Installation Notes

• Reset the line-pressure counter, clear codes, and perform a quick-learn procedure before road testing VLP applications.

• 42RLE-VLP units built before April 28, 2008 may benefit from the latest PCM calibration, particularly for low-speed partial TCC apply behavior.

• Use the correct ATF+4 transmission fluid for the vehicle application. Lubegard ATF protectant can be considered as part of a professional transmission-fluid service when appropriate.
