Three Sonnax 4L60E Forward/Reverse Abuse Bore Plugs 77754-21

Three Sonnax 4L60E Forward/Reverse Abuse Bore Plugs 77754-21 Three Sonnax 4L60E Forward/Reverse Abuse Bore Plugs 77754-21

Three Sonnax 4L60E Forward/Reverse Abuse Bore Plugs
77754-21
Three Plugs for only $36.00

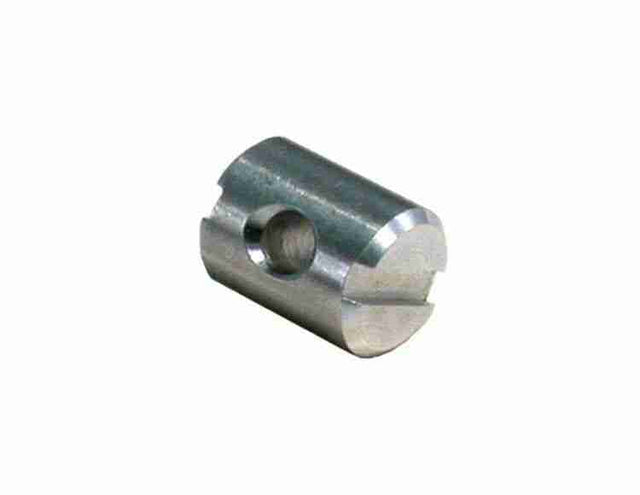

The bore plug in GM 4L60-E, 4L65-E and 4L70-E units is held loosely in place with a coiled spring pin, allowing the opposing spring and oil pressure forces to stroke it within the bore.

This constant oscillation causes the plug to wear and allows PR oil at the low overrun valve and 3-4 clutch oil at the 3-2 downshift valve to exhaust at the abuse valves. This excessive oil loss can result in delayed apply of the Low/Reverse clutch and a tie-up of the 3-4 clutch and 2-4 band. Sonnax Forward and Reverse abuse bore plug 77754-21 resolves these problems.

This plug is used in two locations in the valve body: to separate the forward abuse and low overrun valves, and to separate the reverse abuse and 3-2 downshift valves.

The Sonnax plug has an increased diameter to restore proper valve body clearance in the circuitsThe plug has a smaller retaining pin hole to reduce plug movement that results in wearNo tooling is required for this bore plug



Please contact us with any questions or concerns.
