10 Sets Corvette Servo Pistons For GM 4L60E 700R4 1982-Up

Corvette Servo Piston Set For GM 4L60E And TH700-R4/700R4 1982-Up — 10 Sets

This listing includes 10 new Corvette-style 2nd-apply servo piston service sets for compatible GM TH700-R4/700R4 and 4L60E automatic transmissions.

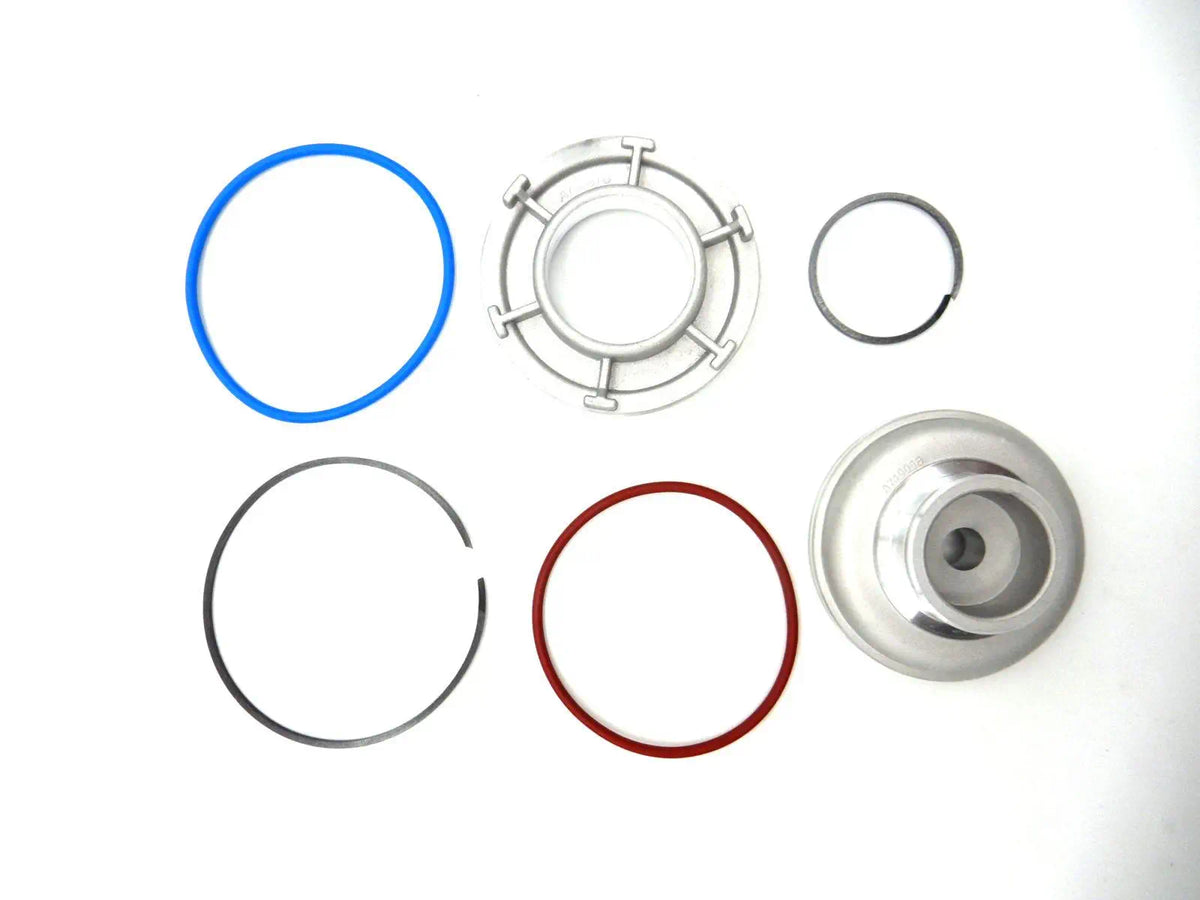

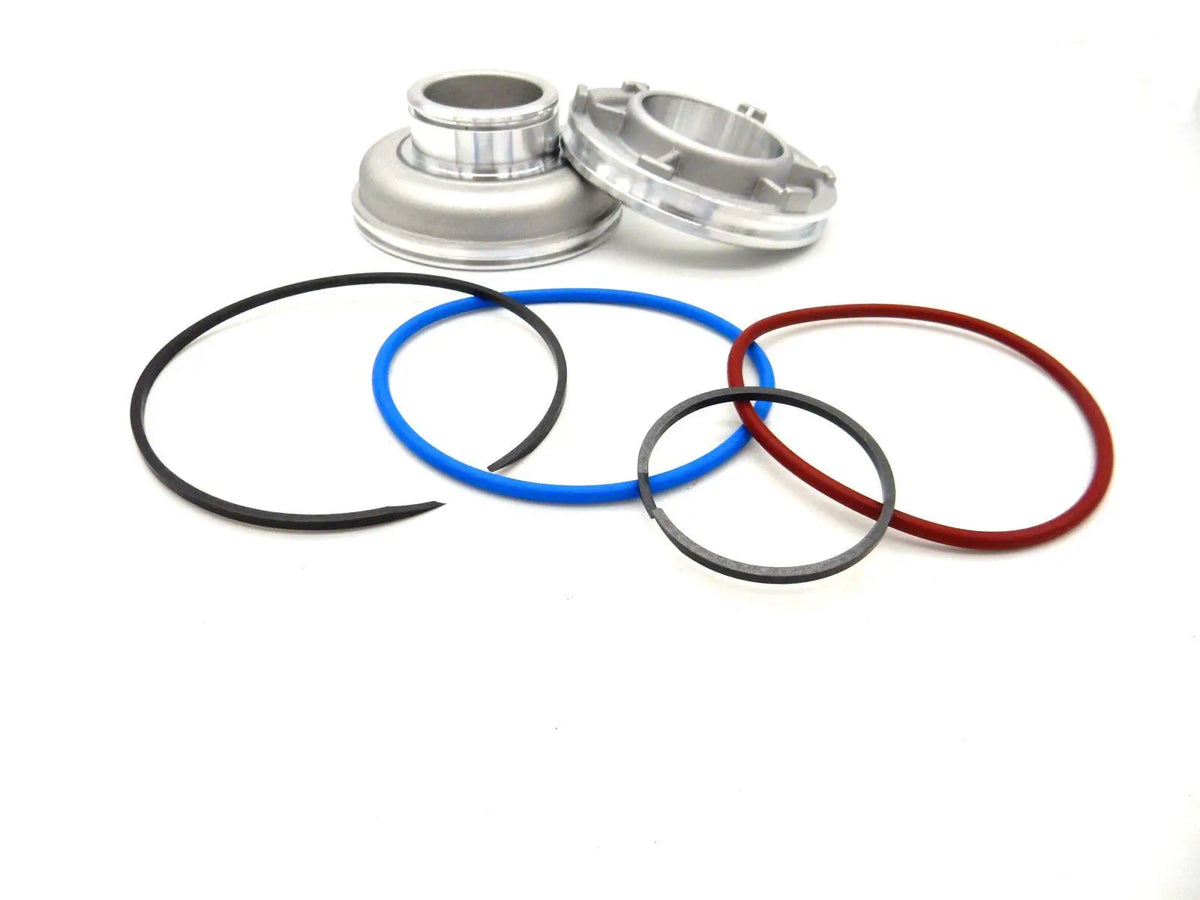

Included In Each Set

• TH700-R4 2nd Apply Piston, Inner — 1.642-inch OD

• TH700-R4/4L60E 2nd Apply Piston, Outer

• TH700-R4 Inner Servo Piston O-Ring — Red Or Green, 1982-Up

• TH700-R4/4L60E Outer Servo Cover O-Ring — Blue, 1984-Up

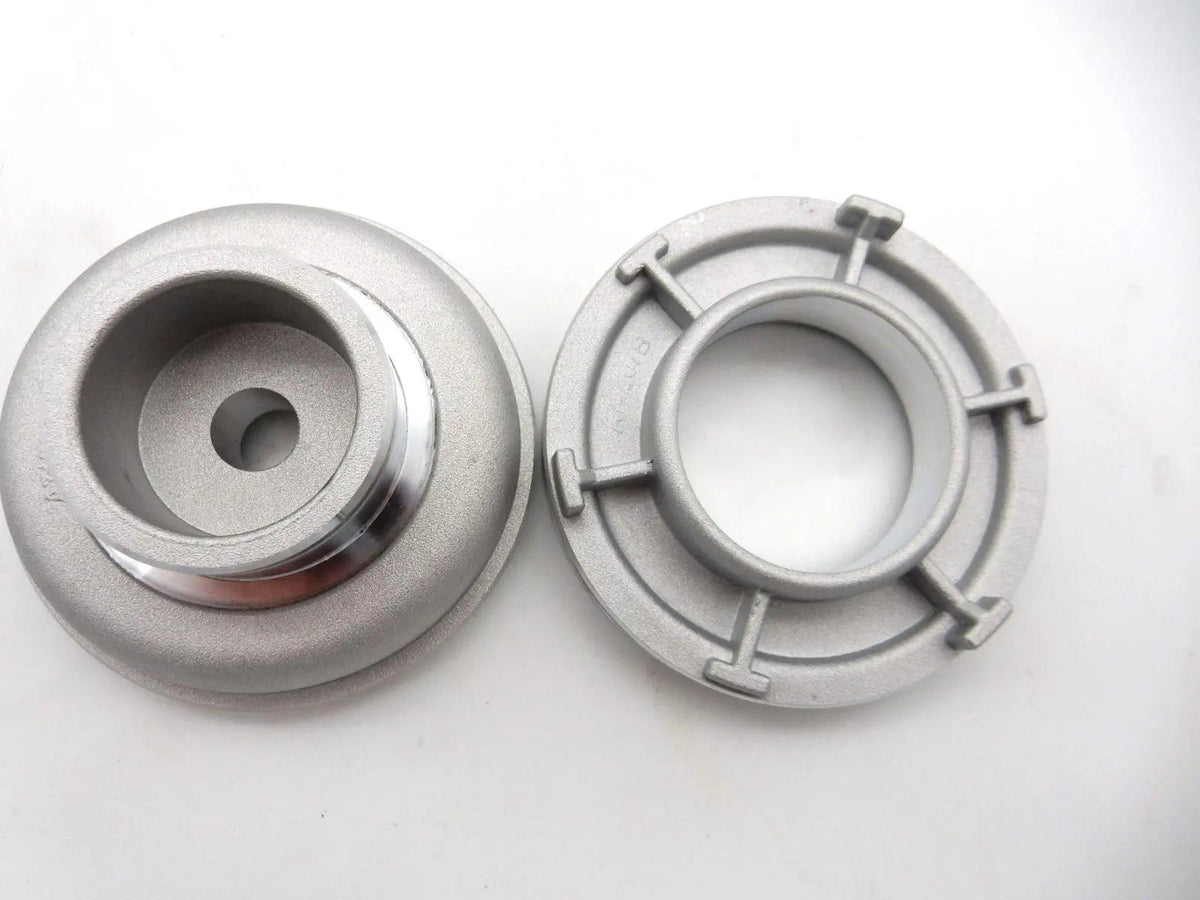

• 4L60/E Corvette Servo 2nd-Apply Piston And Cover

• Teflon Sealing Rings For Assembly

Product Function

The 2nd-apply servo operates the internal 2-4 band. A Corvette-style servo uses a larger apply-piston design than many stock configurations, supporting stronger band application and a more positive shift feel in properly built compatible transmissions. Comparable Corvette servo kits are commonly sold with the piston, housing/cover, O-rings, and scarf-cut or Teflon sealing rings for this purpose.ebay+2

Service Benefits

Replace servo pistons, O-rings, and Teflon sealing rings when servicing a worn or leaking servo assembly. Damaged seals and worn components can contribute to delayed or soft shifts, shift flare, loss of consistent band apply, or other 2nd- and 4th-gear driveability concerns.

Important Fitment Notes

• Fits compatible GM TH700-R4/700R4 and 4L60E transmission servo applications.

• Inner 2nd-apply piston measures 1.642 inches OD.

• The Corvette servo piston and cover are supplied with no rings installed.

• Teflon rings must be installed correctly during assembly.

• Confirm the transmission, servo design, servo pin, spring arrangement, cover, and piston dimensions before purchase.

• Professional installation is recommended for transmission internal-service work.

Bulk Shop Quantity

You will receive 10 complete sets. This quantity is suited to transmission shops, rebuilders, automotive-parts resellers, and multi-transmission repair work.

For a complete fluid-service finish, add Lubegard ATF Protectant when refilling the transmission to help support smooth shift operation after the rebuild or repair.
