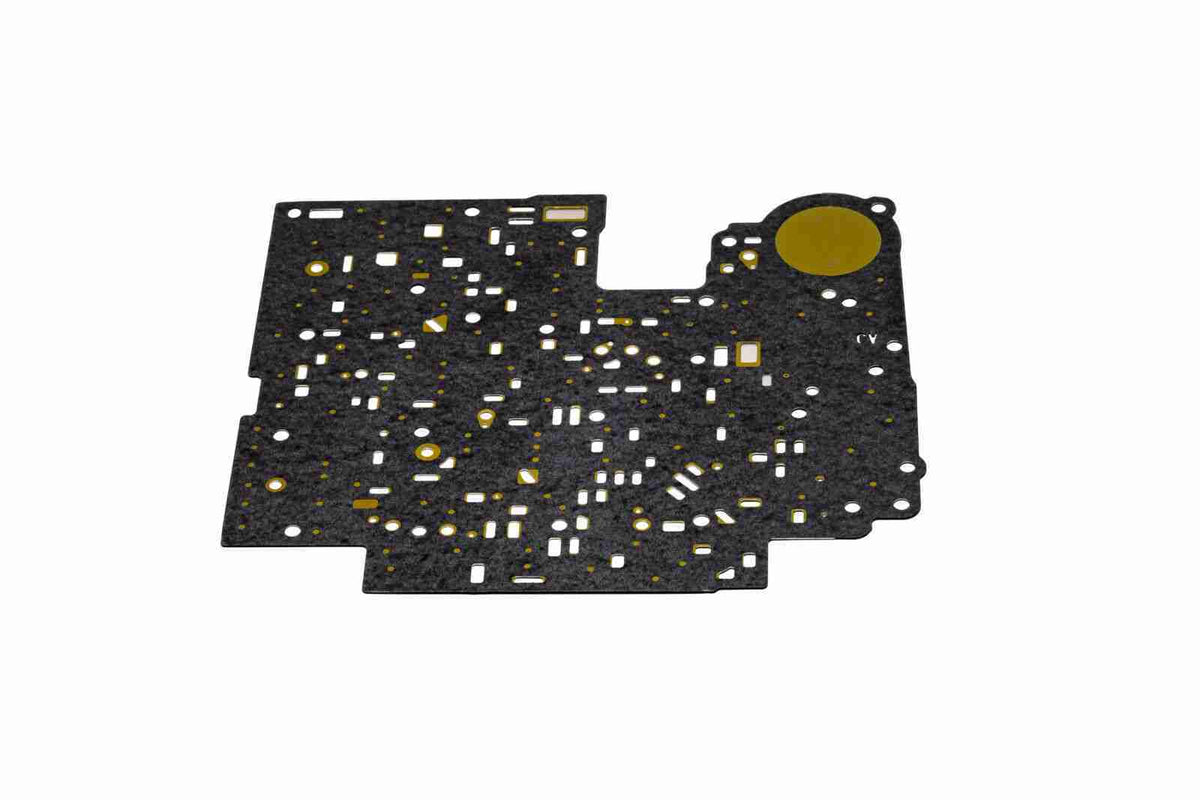

Valve Body Spacer Plate With Gaskets For GM 4L60E 4L65E 2002-2008

Genuine GM/ACDelco OE valve body spacer plate assembly for select 2002-2008 GM 4L60E and 4L65E automatic transmission applications.

OE Part Number: 24241784
OE Plate Code: 1HA
Part Type: Valve Body Separator Plate With Bonded Gaskets
Material: Steel
Quantity: One spacer plate assembly with bonded upper and lower gaskets

What This Part Does

The valve body spacer plate sits between the valve body and transmission case. It routes hydraulic fluid through calibrated passages and keeps separate hydraulic circuits sealed from one another. The bonded gaskets are installed on both sides of the plate, eliminating the need to source separate upper and lower spacer plate gaskets.

Common Service Findings

Replace the plate when inspection shows worn checkball areas, grooves, warped steel, damaged bonded gasket material, or sealing-surface distortion. A damaged plate may contribute to internal cross-leaks, delayed engagement, inconsistent 1-2 shifts, 2-3 or 3-4 flare, low or unstable line pressure, reverse slipping, or other shift-quality concerns.

Transmission symptoms can have more than one cause. Inspect the valve body, checkball seats, screens, solenoids, and related components before determining that the separator plate is the sole repair needed.

Fitment Information

Fits select 2002-2007 C, K, and G platform applications and select 2002-2008 S and T platform applications equipped with GM 4L60E or 4L65E transmissions.

Common applicable vehicle lines may include:

• Chevrolet Silverado 1500, Tahoe, Suburban 1500, Avalanche, Express, S-10, Blazer, and TrailBlazer

• GMC Sierra 1500, Yukon, Yukon XL, Savana, Sonoma, Jimmy, and Envoy

• Buick Rainier

• Oldsmobile Bravada

• Isuzu Ascender

Important Fitment Check

GM used several different bonded valve body spacer plates during these years. Match OE part number 24241784 and confirm the original plate is stamped 1HA before purchase. Do not rely on vehicle year, engine size, or transmission family alone.

Installation Notes

Clean and inspect both mating surfaces, verify all checkball locations, and follow the correct GM service procedure and valve body bolt torque sequence. Professional installation is recommended.

Refill with the specified automatic transmission fluid for the vehicle. Lubegard ATF Protectant may be used according to product directions and confirmed fluid compatibility; it does not replace mechanical repair.
