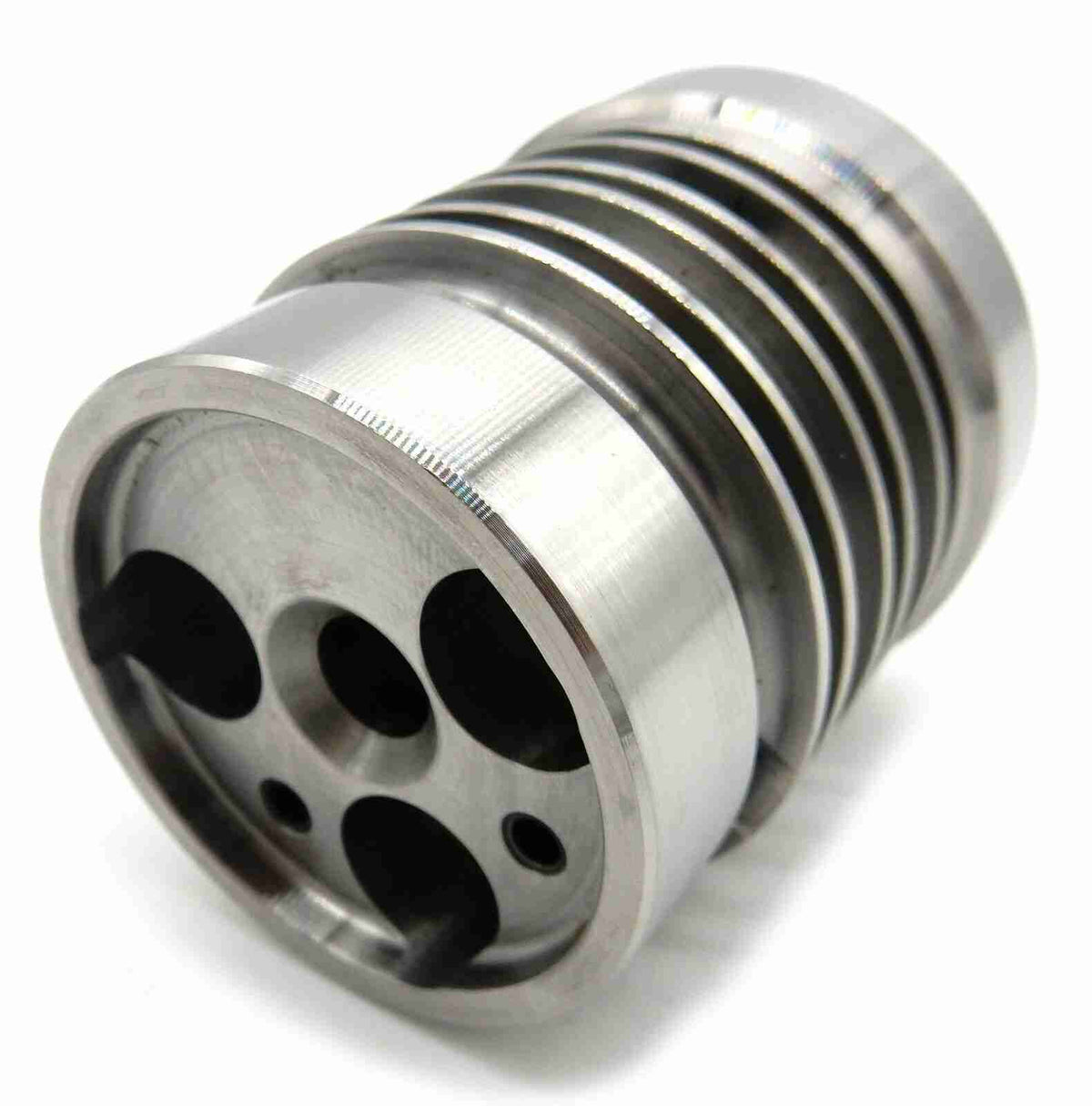

6T40 Ring Tower Drum Support for GM 2010-Up 3-Ring 3-Bolt

6T40 Drum, Hub Support/Ring Tower — Fits GM 2010-Up 3-Ring, 3-Bolt Applications

Replacement ring tower/hub support for compatible GM 6T40 automatic transmissions using the 2010-up three-ring, three-bolt configuration.

About This Part

This internal transmission hub support, also called a ring tower or drum support, mounts in the transmission case and supports hydraulic-feed operation for the 3-5-Reverse and 4-5-6 clutch assemblies. It is designed for the later 3-ring configuration and measures approximately 2.080 inches in overall length.

Why Replace The Ring Tower

During teardown, inspect the support journals and sealing-ring lands for scoring, wear, galling, cracks, or other damage. A worn ring tower can allow internal hydraulic leakage and may contribute to clutch-apply issues, pressure loss, harsh shifting, delayed engagement, slipping, or other rebuild-related transmission concerns.

Important Fitment Details

Fits compatible GM 6T40 automatic transmission applications from 2010-up using:

• 3 sealing-ring locations

• 3-bolt mounting pattern

• Approximately 2.080-inch tower length

• 3-5-Reverse and 4-5-6 clutch configuration

Do Not Confuse With Early 4-Ring Towers

The 6T40 transmission family has multiple internal designs. Earlier units may use a 4-ring ring tower with a different hydraulic arrangement. Do not rely on vehicle year alone. Match the removed part’s ring count, mounting-bolt pattern, dimensions, and transmission configuration before ordering.

What Is Included

One 6T40 3-ring, 3-bolt hub support/ring tower drum.

Sealing rings, mounting bolts, clutch drums, clutch plates, pistons, and other transmission rebuild components are not included unless specifically shown.
