ACDelco 4L60E Overhaul Kit 2004-2014 4WD 19532540

ACDelco 4L60E Transmission Overhaul Kit 2004-2014 4WD

OEM part number 19532540.

What This Kit Does

This is the complete sealing package for a 4L60E, 4L65E, or 4L70 rebuild. Age and heat harden the clutch piston seals and wear the sealing rings, which lets apply oil bleed off. The result is 3-4 slip or flare, delayed engagement into drive or reverse, soft shifts, and leaks at the pan rail, pump nose or tailshaft. Replacing every seal and gasket with OE-spec parts restores line pressure so the clutch packs apply fully.

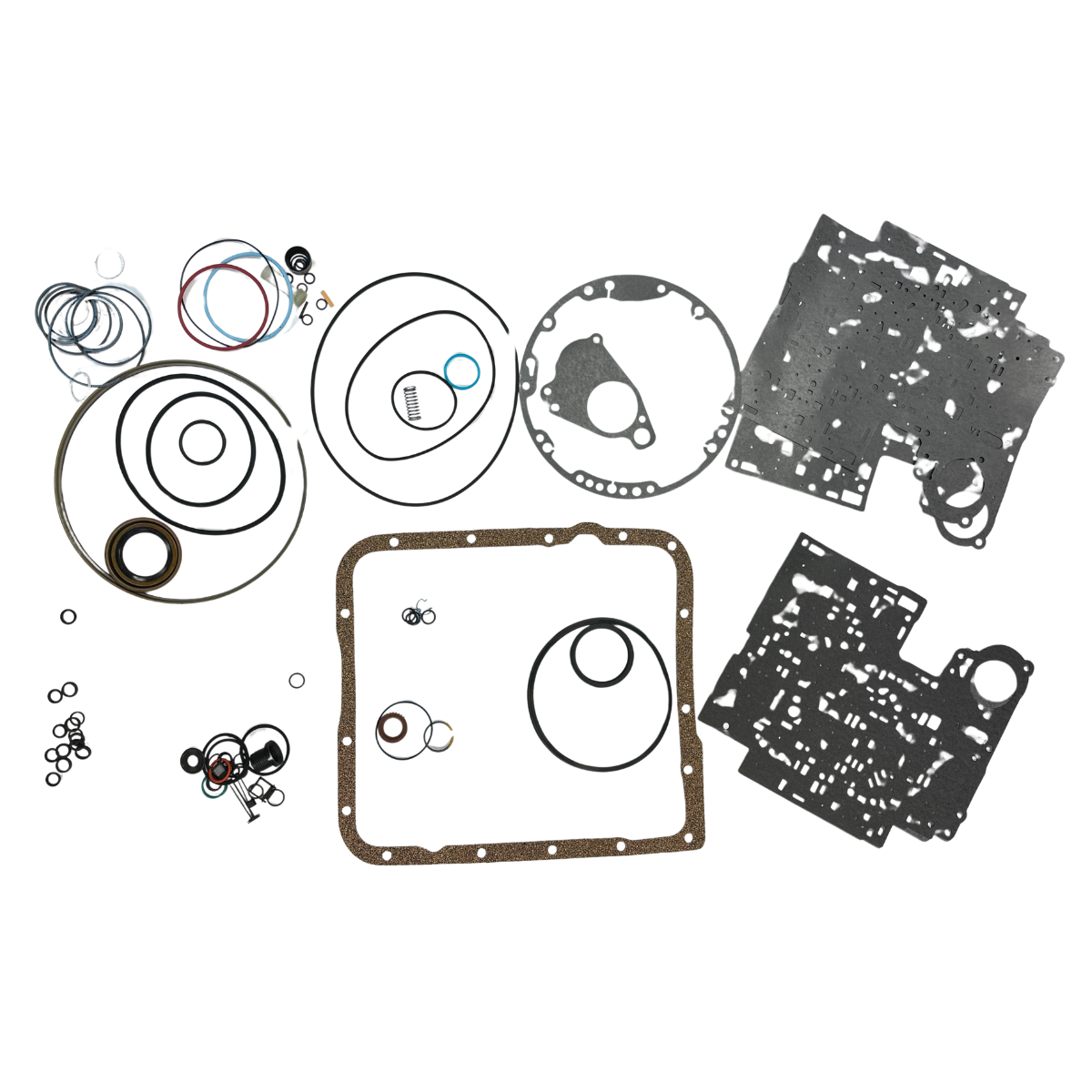

What Is Included

• All paper gaskets

• Transmission pan gasket

• Complete rubber O-ring kit

• Clutch piston lip seals

• Front pump metal-clad hard seal

• Rear extension housing metal-clad hard seal

• Teflon and steel sealing ring kit

• Small-parts sub-kit

• QR code insert linking to step-by-step installation instructions

• Fits select GM 4WD applications with 4L60E, 4L65E, and 4L70 automatic transmissions

• Vehicle year 2004-2014

• Verify transmission model, original part number, transmission build configuration, and 4WD transfer-case adapter gasket requirements before purchase and installation

• Compare the kit contents with the components removed from the transmission

Important Contents Note:
This is an overhaul/service seal kit, not a master rebuild kit. Clutch frictions, steel plates, bands, pistons, bushings, bearings, hard parts, transmission filter, and pan gasket are not included unless specifically pictured or stated in the package contents.

For best service results, refill with the vehicle manufacturer’s specified automatic transmission fluid. Lubegard ATF products may be used where compatible and according to the product instructions.
