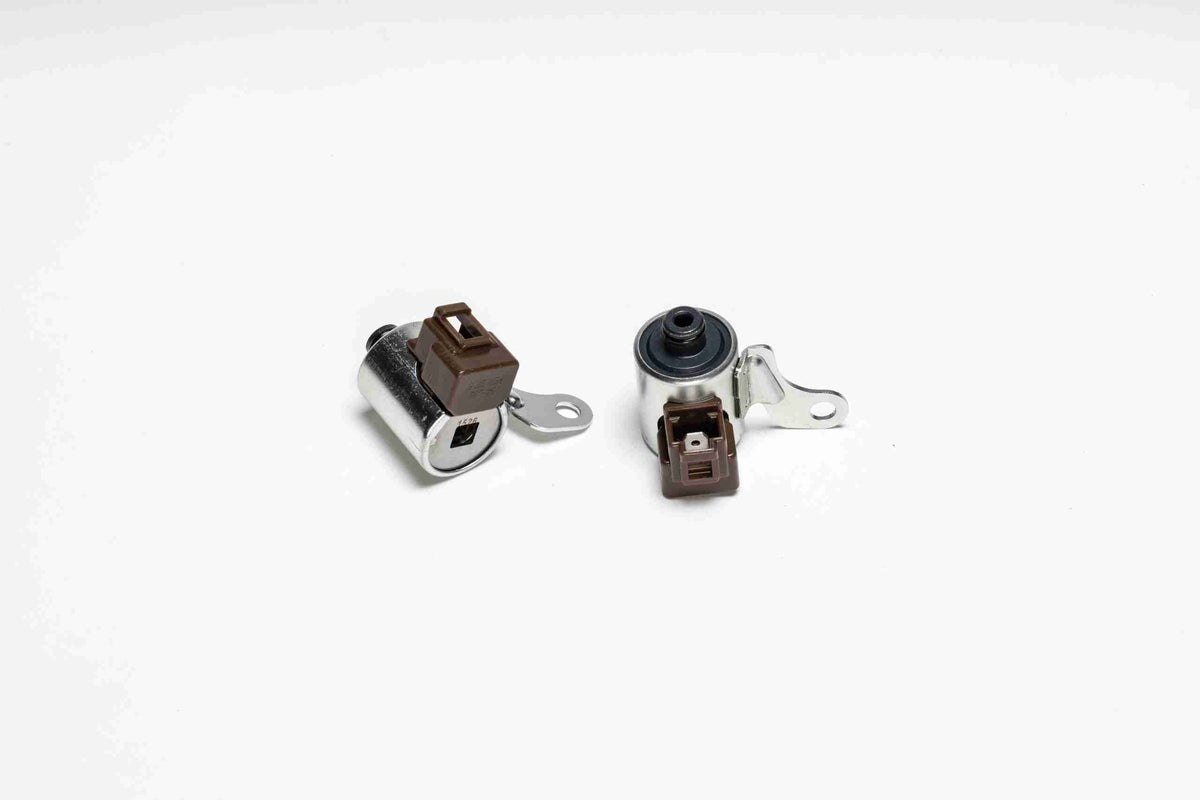

Lock-Up TCC Solenoid for Aisin Warner AW50-40LE AW50-42LE 1989-Up

Replacement lock-up torque converter clutch solenoid for compatible Aisin Warner AW50-40LE and AW50-42LE automatic transmissions in 1989-up applications.

OEM Reference Number: 50403-13001L
Part Type: Lock-Up / TCC Solenoid
Transmission Family: Aisin Warner AW50-40LE, AW50-42LE
Quantity: One solenoid
Application: Valve-body service and torque converter clutch control

Function

The lock-up TCC solenoid controls torque converter clutch operation in the automatic transmission. When a compatible solenoid becomes electrically faulty, sticks, or does not operate within specification, it may contribute to torque converter clutch codes, elevated highway RPM, shudder, intermittent lock-up, or improper lock-up engagement and release.

Fitment Verification

Confirm all of the following before ordering:

• Transmission is Aisin Warner AW50-40LE or AW50-42LE

• Original solenoid matches the connector, mounting style, and physical configuration

• OEM reference 50403-13001L matches the part being replaced

• Valve-body location and electrical connection match the original component

Do not order based on vehicle year, make, or model alone. The same vehicle platform may use different transmissions, valve bodies, calibrations, or solenoid configurations.

Service Guidance

This solenoid is intended for valve-body repair after proper diagnosis identifies a lock-up solenoid concern. TCC-related symptoms can also be caused by wiring faults, damaged connectors, contaminated fluid, valve-body wear, torque-converter problems, hydraulic faults, or transmission control issues.

Install using the appropriate service information for the vehicle and transmission. Use the manufacturer-specified automatic transmission fluid during reassembly. Lubegard ATF Protectant may be used when compatible with the application and according to its product directions.
