Output Speed Sensor VSS TSS for Ford 4R100 Non-PTO F-250 F-350 Excursion 98-05

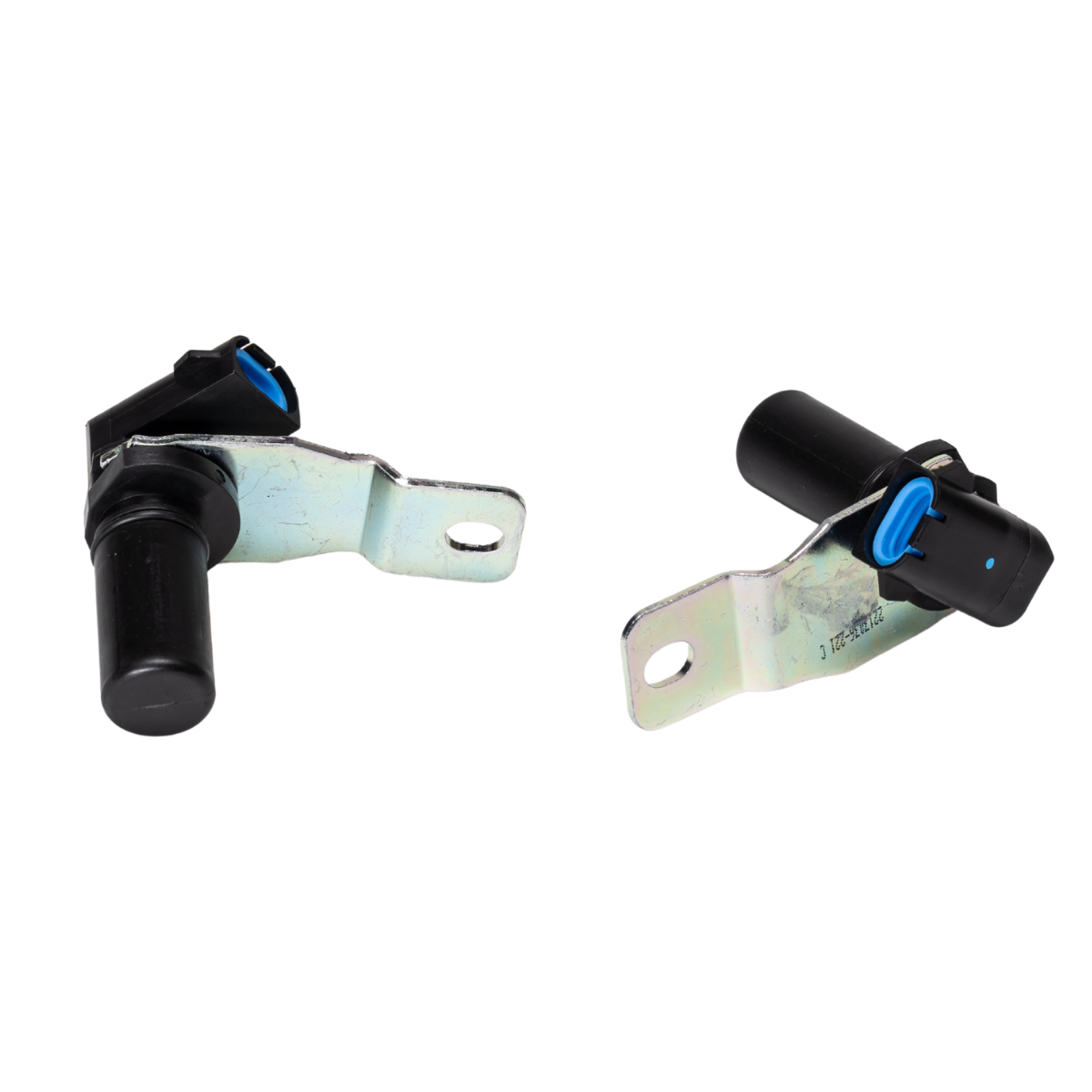

Output Shaft Speed Sensor (OSS) and Turbine Shaft Speed Sensor (TSS) for Ford 4R100 non-PTO automatic transmissions, 1998-2005.

Direct replacement for OEM Ford F81Z-7M101-AA.

Fitment (4R100 non-PTO applications):

• Ford F-150 1998-2003

• Ford F-250 Super Duty 1999-2003

• Ford F-350 Super Duty 1999-2003

• Ford F-450 Super Duty 1999-2003

• Ford F-550 Super Duty 1999-2003

• Ford Expedition 1999-2003 (5.4L V8)

• Ford Excursion 2000-2005

• Ford E-150 Econoline 1998-2004

• Ford E-250 Econoline 1998-2004

• Ford E-350 Econoline 1998-2004

• Ford F-150 SVT Lightning 1999-2004

• Ford F-150 Harley-Davidson Edition 2002-2003

• Lincoln Navigator 1998-2004

• Lincoln Blackwood 2002

Compatible engines: 4.6L V8, 5.4L Triton V8, 6.8L Triton V10, 7.3L Power Stroke Diesel.

What it does:
The 4R100 non-PTO uses the same sensor (F81Z-7M101-AA, 781-1979 ohms) at both the Output Shaft Speed (OSS) position on the extension housing and the Turbine Shaft Speed (TSS) position on the case. This magnetic pickup sends a frequency signal to the PCM that controls shift timing, torque converter lockup, cruise control operation, and speedometer readout.

Problems this sensor resolves:

• Erratic, jumpy, or dead speedometer

• Harsh, delayed, or missed 3-4 upshift

• Torque converter clutch not locking or shuddering

• Transmission dropping into failsafe / limp mode

• Cruise control drop-out

• DTCs P0500, P0715, P0720, and P0721

Specifications:

• OEM reference: Ford F81Z-7M101-AA

• Application: 4R100 non-PTO models only

• Resistance: 781-1979 ohms

• Sensor type: Magnetic pickup, variable reluctance, 2-pin

• Body: 37 mm flange mount, sealed housing

• Install torque: 8-10 N·m (71-81 in-lb)

Cross references: F81Z7M101AA, 5S5413, SU2345, SN7411, VSS1009, SC474, 74094, DY1229, SS10695, SS11868, AU0142, 2VSS0046, 1802-518650.

Installation is a straightforward single-bolt job. No programming required.

While the transmission pan is off, add a bottle of Lubegard Platinum Universal ATF Protectant to your fresh fluid to protect clutches, smooth shifting, and extend the service life of your 4R100.

Note on compatibility: This is the non-PTO sensor (781-1979 ohms). If your truck is a PTO-equipped model, the TSS position requires F81Z-7M101-BA (496-1244 ohms) instead — the OSS position still uses F81Z-7M101-AA on all models.
